This guide explains how to configure Edcast to stream on Shoutcast Servers.

First you will need to download and install Edcast.

The 'Standalone' version is best for when you want to stream your radio to the server from an external program. For example when playing music through your soundcard with such programs as Virtual DJ.

Installing Edcast:

When you are installing Edcast you will be offered to select the 'components to install'. The first six boxes are by default already ticked, but you must also tick 'LAME encoder dll' (for MP3 encoding) as well. This will ensure you can stream in MP3 format that everyone is compatible with.

edcast-install-jpg.229


Install the LAME encoder DLL:

Towards the end of installing Edcast a message box will pop up informing you that you must install a file called 'lame_enc.dll' into your Edcast program directory (usually c:\program files\edcast). Click NO as you can download the file here:

LAME Libraries

Copy the file into your Edcast program directory (usually c:\program files\edcast).

edcast-lame_dll-jpg.230


Load Edcast:

Click the desktop or start menu shortcut for Edcast to load it.

Adding the Edcast Encoder:

Click 'Add Encoder' on Edcast. This will add an entry in the white box below, double click on this entry to configure it.

edcast-add-encoder-jpg.232

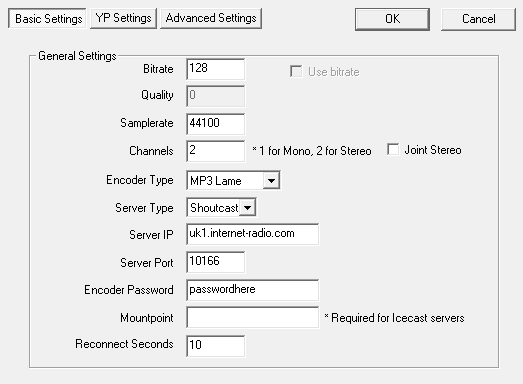

Configuring the Encoder's 'Basic Settings':

edcast-config-settings-edit-jpg.233


Under the general settings you can edit the following information:

basic_settings_shoutcast-png.912


Bitrate: 128 (For example)

SampleRate:
44100 (Default)

Channels: 2 (Default, Stereo)

EncoderType: MP3 Lame

ServerType: Shoutcast

ServerIP: (See Welcome Email for your Hostname) *Please note you will need to remove the http:// in order for this to work correctly.

ServerPort: (See Welcome Email)

Encoder Password: (See Welcome Email)

Reconnect Seconds: 10 (Can be user specified to any value)

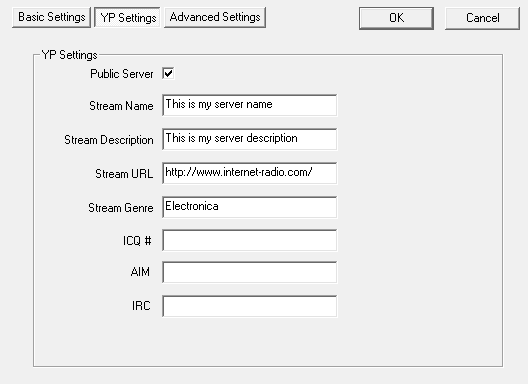

Setup 'YP Settings':

edcast-yp-settings-jpg.237


Choose and input your station title, description, URL (website) and Genre.

edcast_yp_settings-png.913


Click 'Connect'

edcast-add-encoder-jpg.232


:)
