Creating the “Authhash” for Shoutcast v2 servers.

Support

Level 1 Support
Staff member
UPDATED: June 2021

This guide explains how to configure the 'Shoutcast v2' “Authhash” settings for Shoutcast servers v2.6 and above.

'Shoutcast v2' requires you to create an 'Authorization Key' (Authhash) for your stream so that it can be registered for the Shoutcast directories and as a 'Public' stream. If a streams 'Authhash' settings are not completed a server will act as 'Private' until it is registered. If you want your station to be made publicly available in their directories then you will need an authorization key. Please note this is not required for private stations.

requires_registration_shoutcast_directory-png.1038


Please see the following wiki page regarding Shoutcast's “public” listing requirements. Some more detailed information on the 'SHOUTcast Authhash Management' can be found here.

Creating the “Authhash”

In order to create your 'Authorization Key' (Authhash), first click on the 'Admin' link from the navigation menu found on the left of your control panels 'Overview' page.

server_admin_page-png.1040


This will then take you to your servers “SHOUTcast Stream Status” page.

At the top of this page to the right is your servers 'Admin' login.

server_login-png.1041


The username for this is 'Admin' and the password will be the same as your servers control panel administrator password.

server_admin_login-png.1039


Once logged in you next need to use the 'Create Authhash' link.

create_authhash-png.1037

You are then next taken to a page which page allows you to enter or amend the authhash to be used for your Shoutcast v2 server. As you will have not yet created this, you again need to click on the 'Create Authhash' button.

create_authhash-png.1356

Once you have clicked on the 'Create Authhash' button you are then taken to the Shoutcast Radio Manager page to either sign in or create a new account.

shoutcast_login-png.2672


To create a new account (if you don't have one already), navigate down to the the bottom of the page and select 'Shoutcast Server Software' under the list of plans.
choose_plan-png.2669

Next, select 'GET STARTED FREEMIUM' to register your Authhash for free. *Please refer to the notes on the free/premium versions at the bottom of this guide.

freemium-png.2670


You'll then need to enter your name/email address and password to begin setting up your free account.
register-png.2671

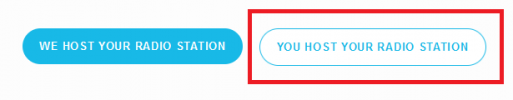

As you host your station on our servers here you will need to select the 'YOU HOST YOUR RADIO STATION' option.

choose_host-png.2673


Then you need to select 'GET STARTED' to register for the 'Freemium' plan. *Please refer to the notes on the free/premium versions at the bottom of this guide.

choose_freemium-png.2674


The first step is to add a logo for your station, set your radio stations name and the stream description.

set_up_1-png.2676


Next, select your stations genres and the 'Online Station' option.

select_genres-png.2677


Then finally set your stations location, time-zone and language information. You can also set your own personal websites URL and add any social media pages that you have.
station_info-png.2678

Once this has been registered you are then redirected to your Shoutcast Radio Manager page. From the side menu navigate down to the 'Settings' options.

setings-png.2679


To find your stations authhash key click on the 'Advanced' tab.

advanced_settings-png.2680


Next, copy and paste the Authhash into your Shoutcast servers authhash settings and click to 'Save'.

copy_authhash-png.2681

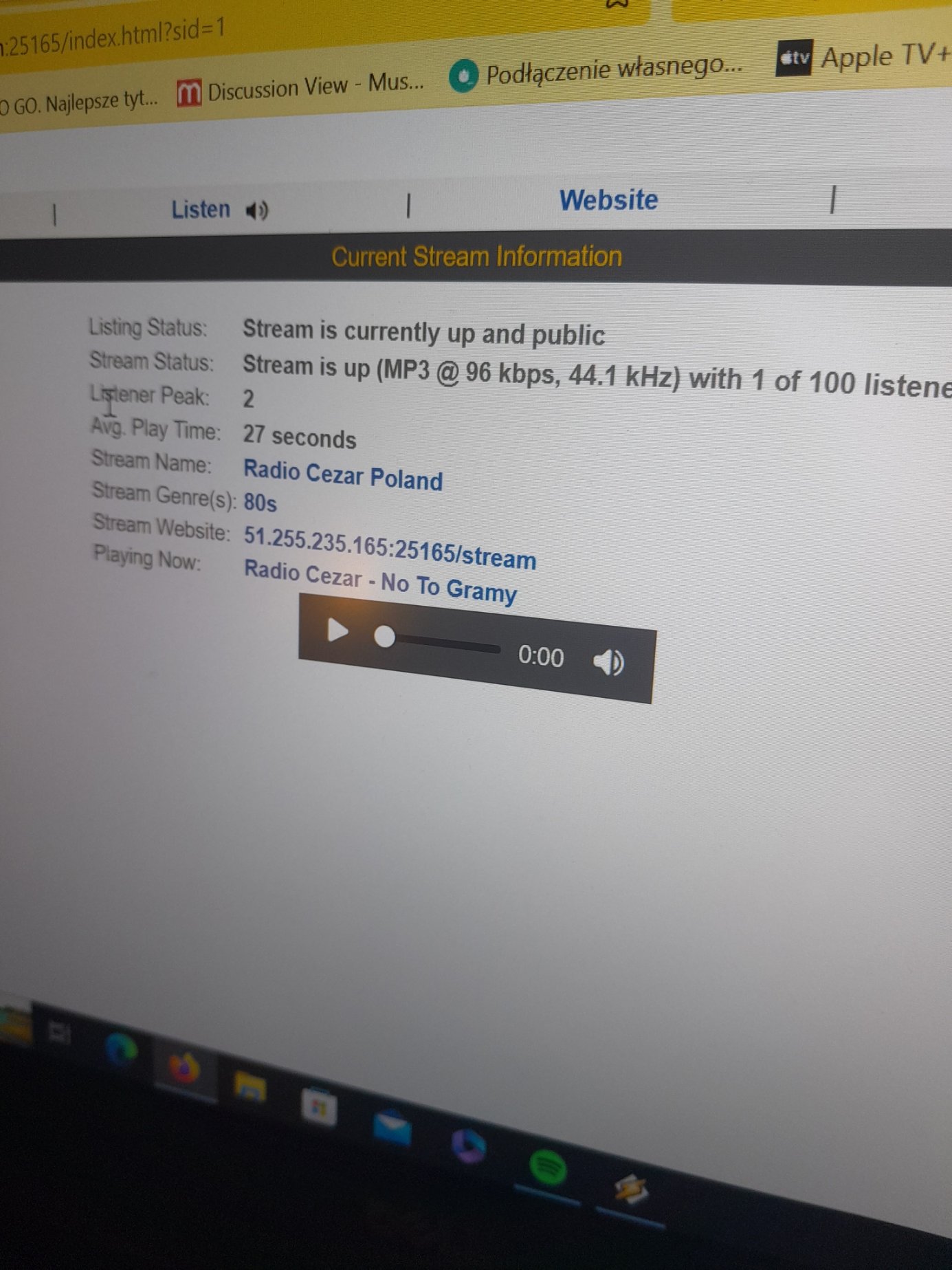

This will then become a 'Public' server available on the Shoutcast directories as well as within our own directories.

stream_up_and_public-png.1042

*PLEASE NOTE - The 'Freemium' version has imposed limitations, so in order to stream at a bitrate above 128kbps (and in the AAC format) you now unfortunately have to pay shoutcast.com $9.90 per month. Please see their pricing page for more information on this: https://www.shoutcast.com/Pricing

We have a guide for configuring the Shoutcast Server Software 'Premium' plan here.


Attachments

  • create_authhash.png
    11.3 KB · Views: 18,884
  • requires_registration_shoutcast_directory.png
    15.8 KB · Views: 19,653
  • server_admin_login.png
    14.9 KB · Views: 18,952
  • server_admin_page.png
    5.3 KB · Views: 18,338
  • server_login.png
    2.5 KB · Views: 18,228
  • stream_up_and_public.png
    10.8 KB · Views: 18,451
  • create_authhash.png
    14.1 KB · Views: 8,969
  • choose_plan.png
    3.4 KB · Views: 292
  • freemium.png
    20.6 KB · Views: 294
  • register.png
    187.1 KB · Views: 287
  • shoutcast_login.png
    14.2 KB · Views: 298
  • choose_host.png
    5.2 KB · Views: 281
  • choose_freemium.png
    12.3 KB · Views: 289
  • set_up_1.png
    64.3 KB · Views: 280
  • select_genres.png
    21.9 KB · Views: 277
  • station_info.png
    21.7 KB · Views: 269
  • setings.png
    8.6 KB · Views: 273
  • advanced_settings.png
    19.9 KB · Views: 268
  • copy_authhash.png
    5.1 KB · Views: 262
Last edited:
I use Shoutcast 2.5.1 724 posix/linux x64,when I try to make summary(description) or put tags,and update info,I launch pop-up-THE WEBSITE MUST SPECIFY HTTP OR HTTPS.


Support

Level 1 Support
Staff member
Hi gulbis37,

Ok so when you enter your websites url just make sure you put either http:// or https:// at the start of the url. If this is still giving you error messages then we can only suggest contacting shoutcast.com themselves for some help with this.

Hi gulbis37,

Ok so when you enter your websites url just make sure you put either http:// or https:// at the start of the url. If this is still giving you error messages then we can only suggest contacting shoutcast.com themselves for some help with this.
Thank you,sorted.


houseradio

New Member
It doesn't work this way. They have changed the step with Existing Stream URL – Here your enter your servers stream URL. It is missing when creating new station.


Support

Level 1 Support
Staff member
Hi houseradio,

Yes we are aware that shoutcast.com have recently changed the way in which this all works with their authhash settings and it now requires your server account to be running their very latest version of Shoutcast v2.6 which we do not run at this time here on our servers (which is v2.5).

Our Shoutcast version gets updated along side Centovacast (the control panel software), so when the next Centovacast update comes out we imagine we'll see a newer Shoutcast version too. We could upgrade just Shoutcast itself to v2.6, but we run the risk of compatibility issues with Centovacast so it's best we leave it to the Centova guys.

Hopefully an update (or Centovacast v4) will be on its way very soon!
